VanCryst VC010 VGA EDID Emulator - Functions: Video Emulation, Video Switcher - 1920 x 1200 - VGA - 1 Pack - External
VanCryst VC010 VGA EDID Emulator - Functions: Video Emulation, Video Switcher - 1920 x 1200 - VGA - 1 Pack - External
VanCryst VC010 VGA EDID Emulator - Functions: Video Emulation, Video Switcher - 1920 x 1200 - VGA - 1 Pack - External
ATEN Technology, Inc

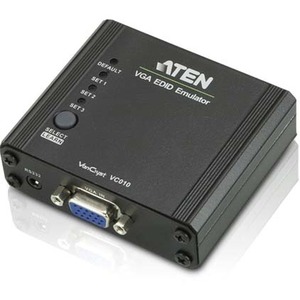

Photo is for Illustration purposes only. Actual Product may be different. Part Num:
VC010Condition: Brand New
$105.78
Add To Cart
Total price is...
Ships next business day
Key Highlights
• Memorizes the display to reduce loss of signals and display quality as you disconnect or reconnect the device
• To fulfill your needs, this video emulation function is a perfect choice
• Plug and Play your video emulator with the PC and go
• No hassle of internal installation, install externally
The ATEN VC010 is a VGA EDID Emulator, which is designed to emulate and store the EDID of a video display, providing constant and reliable EDID data for the a VGA source device to efficiently optimize video resolution.
The ATEN VGA EDID Emulator is a convenient tool that ensures smooth viewing experience for any video installation. The EDID Emulator provides three flexible methods for selecting and switching between EDID Modes: Default Mode, Programming Mode, and Learning Mode. It comes with an easy-to-use EDID Wizard that allows users to quickly view, store and manage EDID settings.
General Information
|
| Manufacturer | ATEN Technology Inc |
| Manufacturer Part Number | VC010 |
| Manufacturer Website Address | https://www.aten.com/us/en/ |
| Brand Name | VanCryst |
| Product Model | VC010 |
| Product Name | VC010 VGA EDID Emulator |
| Packaged Quantity | 1 |
| Product Type | Video Emulator |
Technical Information
|
| Functions | Video Emulation | Video Switcher |
| Maximum Resolution | 1920 x 1200 |
| Maximum Data Transfer Rate | 18 Gbit/s |
| Platform Supported | PC |
| Analog Signal | Yes |
Interfaces/Ports
|
| VGA | Yes |
| Number of VGA Inputs | 1 |
| Number of VGA Outputs | 1 |
| Serial Port | Yes |
Physical Characteristics
|
| Form Factor | External |
| Height | 0.96" (24.50 mm) |
| Width | 3.06" (77.60 mm) |
| Depth | 3.11" (79 mm) |
| Weight (Approximate) | 150 g |
Miscellaneous
|
| Package Contents | - VC010 VGA EDID Emulator
- 1 x RS-232 Configuration Cable
- 1 x USB to DC Power Cord
- 1 x User Instructions
|
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS | WEEE |
| Country of Origin | Taiwan |
Warranty
|
| Limited Warranty | 2 Year |
