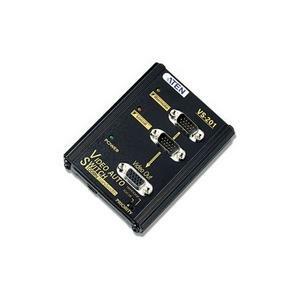

Aten 2 to 1 Video Switch - 2 x Computer, 1 x Monitor - 1024 x 768 @ 85Hz - SVGA
Aten 2 to 1 Video Switch - 2 x Computer, 1 x Monitor - 1024 x 768 @ 85Hz - SVGA
Aten 2 to 1 Video Switch - 2 x Computer, 1 x Monitor - 1024 x 768 @ 85Hz - SVGA
ATEN Technology, Inc
Photo is for Illustration purposes only. Actual Product may be different. Part Num:
VS201Condition: Brand New
$84.25
Add To Cart
Total price is...
Key Highlights
• Use this video switch box and eliminate the need to manually switch cables between the sources
• Quickly and easily connect with the computer
• Connect single display to 2 sources
• Enjoy watching any class of content on 1024 x 768 resolution
The Video Auto Switch, VS-201, is an automatic video switch ideal for monitors using analog signals. A slide switch sets the priority of incoming video signals for display and the VS-201 automatically selects the proper input signal to its output port. Both features make the VS-201 an excellent choice for educational environments.
General Information
|
| Manufacturer | ATEN Technology Inc |
| Manufacturer Part Number | VS201 |
| Manufacturer Website Address | http://www.aten.com/us/en/ |
| Brand Name | ATEN |
| Product Name | 2 to 1 Video Switch |
| Product Type | Video Switchbox |
Technical Information
|
| Number of Input Devices Supported | 2 |
| Device Supported | Computer |
| Number of Displays Supported | 1 |
Video
|
| Graphics Modes | VGA | SVGA |
| Maximum Video Resolution | 1024 x 768 |
| Maximum Video Bandwidth | 100 MHz |
Media & Performance
|
| Maximum Operating Distance | 210 ft (64008 mm) |
Power Description
|
| Input Voltage | 9 V DC |
Physical Characteristics
|
| Product Color | Black |
| Height | 0.94" (23.88 mm) |
| Width | 4.09" (103.89 mm) |
| Depth | 3.85" (97.79 mm) |
| Weight (Approximate) | 165 g |
Miscellaneous
|
| Package Contents | - 1 x VS201
- 1 x User Manual
- 1 x Power Adapter
|
| Additional Information | - Automatic Incoming Signal Selection
- Daisy Chain with ATEN Video Splitters
|
| Certifications & Standards | |
Warranty
|
| Limited Warranty | 3 Year |
