ATEN 9 x 2 4K Presentation Matrix Switch - 4096 x 2160 - 4K - 9 x 2 - Display, Blu-ray Disc Player, Set-top Box, Media Center - 2 x HDMI Out - 1 x DisplayPort In - DisplayPort

ATEN 9 x 2 4K Presentation Matrix Switch - 4096 x 2160 - 4K - 9 x 2 - Display, Blu-ray Disc Player, Set-top Box, Media Center - 2 x HDMI Out - 1 x DisplayPort In - DisplayPort
ATEN 9 x 2 4K Presentation Matrix Switch - 4096 x 2160 - 4K - 9 x 2 - Display, Blu-ray Disc Player, Set-top Box, Media Center - 2 x HDMI Out - 1 x DisplayPort In - DisplayPort

ATEN Technology, Inc

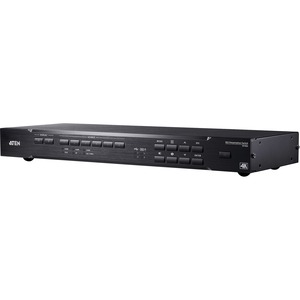

VP1920 Image
Photo is for Illustration purposes only. Actual Product may be different.
Part Num: VP1920
Condition: Brand New
$778.91

Add To Cart

BUY MORE & SAVE

Total price is...

Quantity in stock as of last update: No



Click here to view
real-time quantity



Availability will be displayed by province.
In Stock Alert
Compare to other products

Key Highlights

• Use this audio video switchbox and eliminate the need to manually switch cables between sources
• A great solution for connecting display
• 4096 x 2160 resolution for high-quality video delivery

The ATEN VP1920 is a 3-in-1 presentation switch that integrates a video matrix switch, an audio processor, and analog-to-digital converter functions. With nine multi-format inputs to two HDMI 4K outputs, it is designed to boost the efficiency and impact of professional presentations.

With streamlined control from front panel pushbuttons, IR remote controller, OSD, and RS-232, the VP1920 reduces not only system device count, but also lower operation complexity. It is suitable for all small-to-medium sized corporate and education presentation environments, such as meeting rooms, classrooms, training rooms, or any other presentation setting, such as in exhibition centers or hotels.

General Information
Manufacturer

ATEN Technology, Inc

Manufacturer Part Number

VP1920

Manufacturer Website Address

https://www.aten.com/us/en/

Brand Name

ATEN

Product Model

VP1920

Product Name

9 x 2 4K Presentation Matrix Switch

Packaged Quantity

1

Product Type

Audio/Video Switchbox



Technical Information
Connectivity Technology

Cable

Number of Input Devices Supported

9

Device Supported

Display   |   Blu-ray Disc Player   |   Set-top Box   |   Media Center

Number of Displays Supported

2



Video
Graphics Modes

4K

Maximum Video Resolution

4096 x 2160



Interfaces/Ports
HDMI In

Yes

HDMI Out

Yes

VGA In

Yes

DisplayPort

Yes

Number of USB Ports

6

Number of HDMI Inputs

6

Number of HDMI Outputs

2

Number of VGA Inputs

1

Number of DisplayPort Inputs

1



Media & Performance
Maximum Operating Distance

49.21 ft (15000 mm)



Physical Characteristics
Form Factor

Desktop

Height

1.73" (44 mm)

Width

17.21" (437.20 mm)

Depth

6.44" (163.60 mm)

Weight (Approximate)

2.36 kg



Miscellaneous
Package Contents

  • 9 x 2 4K Presentation Matrix Switch
  • 1 x Power Cord
  • 1 x IR Receiver
  • 1 x IR Remote Control
  • 1 x User Instructions

Environmentally Friendly

Yes

Environmental Certification

WEEE   |   RoHS
