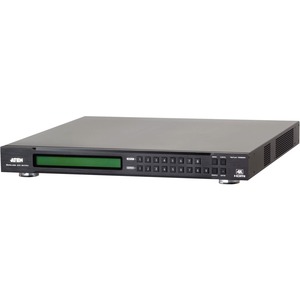

ATEN 8 x 9 4K HDMI Matrix Switch with Scaler - 4096 x 2160 - 4K - 8 x 8 - Display - 9 x HDMI Out
ATEN 8 x 9 4K HDMI Matrix Switch with Scaler - 4096 x 2160 - 4K - 8 x 8 - Display - 9 x HDMI Out
ATEN 8 x 9 4K HDMI Matrix Switch with Scaler - 4096 x 2160 - 4K - 8 x 8 - Display - 9 x HDMI Out
ATEN Technology, Inc
Photo is for Illustration purposes only. Actual Product may be different. Part Num:
VM6809HCondition: Brand New
$15,338.06
Add To Cart
BUY MORE & SAVE
Need 5 or more of these on a single order?
Ask for a quotation here.
We generally respond within 3 business hours.
Close
Total price is...
Key Highlights
• Quickly switches both video and audio between sources without physical access
• Quickly and easily connect with the display
• 4096 x 2160 resolution for high-quality video delivery
4K is the next generation of image quality for high definition video, which delivers eight million pixels that is four times as much detail as 1080p Full HD resolutions. ATEN's VM6809H 4K HDMI Matrix Switch with Scaler is compatible with the two latest 4K video resolution standards: 3840 x 2160 and 4096 x 2160. The VM6809H offers powerful HD processing to produce 4K resolutions across nine displays with crystal-clear images.
The VM6809H supports 4K @ 60 Hz, HDMI 2.0 and HDCP 2.2 and features seamless switching that employs an FPGA matrix architecture that ensures continuous video streams, real-time control, and stable signal transmissions. With a built-in high-performance scaler, the VM6809H easily converts various input resolutions into various output display resolutions, giving viewers the best video and picture quality across all displays. The switch integrates video wall functionality with an easy-to-use web GUI that lets you create 17 connection profiles that can be customized into different video wall layouts.
The VM6809H is an ideal solution for applications that require multiple HDMI displays with multiple HDMI sources to be conveniently setup - such as for stage presentations, digital classroom, video conference rooms and any installation that requires real-time synchronization.
More from the Manufacturer
General Information
|
| Manufacturer | ATEN Technology Inc |
| Manufacturer Part Number | VM6809H |
| Manufacturer Website Address | https://www.aten.com/us/en/ |
| Brand Name | ATEN |
| Product Line | VanCryst |
| Product Model | VM6809H |
| Product Name | 8 x 9 4K HDMI Matrix Switch with Scaler |
| Packaged Quantity | 1 |
| Product Type | Audio/Video Switchbox |
Technical Information
|
| Connectivity Technology | Cable |
| Number of Input Devices Supported | 8 |
| Device Supported | Display |
| Number of Displays Supported | 8 |
Video
|
| Graphics Modes | 4K |
| Maximum Video Resolution | 4096 x 2160 |
Interfaces/Ports
|
| HDMI In | Yes |
| HDMI Out | Yes |
| Connectivity (RJ-45) | Yes |
| Number of Connectivity (RJ-45) Ports | 1 |
| Number of HDMI Inputs | 8 |
| Number of HDMI Outputs | 9 |
Media & Performance
|
| Maximum Operating Distance | 49.21 ft (15000 mm) |
Physical Characteristics
|
| Form Factor | Rack-mountable |
| Height | 1.73" (44 mm) |
| Width | 17.73" (450.30 mm) |
| Depth | 17.02" (432.40 mm) |
| Weight (Approximate) | 7.05 kg |
Miscellaneous
|
| Package Contents | - 8 x 9 4K HDMI Matrix Switch with Scaler
- 1 x Power Cord
- 1 x Rack Mounting Kit
- 1 x User Instructions
|
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS | WEEE |
| Country of Origin | Taiwan |
Warranty
|
| Limited Warranty | 3 Year |
