ATEN 4 x 4 HDMI Matrix Switch with Scaler - 1920 x 1080 - Full HD - 1080p4 x 4 - Display - 4 x HDMI Out
ATEN 4 x 4 HDMI Matrix Switch with Scaler - 1920 x 1080 - Full HD - 1080p4 x 4 - Display - 4 x HDMI Out
ATEN 4 x 4 HDMI Matrix Switch with Scaler - 1920 x 1080 - Full HD - 1080p4 x 4 - Display - 4 x HDMI Out
ATEN Technology, Inc
Photo is for Illustration purposes only. Actual Product may be different. Part Num:
VM5404HCondition: Brand New
$3,831.45
Add To Cart
BUY MORE & SAVE
Need 5 or more of these on a single order?
Ask for a quotation here.
We generally respond within 3 business hours.
Close
Total price is...
Key Highlights
• Quickly switches both video and audio between sources without physical access
• A great solution for connecting display
• Enjoy watching any class of content on 1920 x 1080 resolution

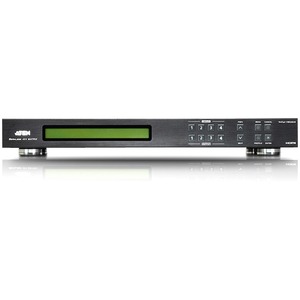

The VM5404H 4 x 4 HDMI Matrix Switch is a distinct HDMI solution that offers an easy and affordable way to route any of 4 HDMI video sources to any of 4 HDMI displays, with a quick view of all port connections via the front panel LCD.
The VM5404H includes seamless switching that employs a FPGA matrix architecture that ensures continuous video streams, real-time control and stable signal transmissions. With a built in high-performance scaler, the VM5404H easily converts various input resolutions into various output display resolutions, giving viewers the best video and picture quality across all displays. The switch integrates video wall functionality with an easy to use web GUI that lets you create 8 connection profiles that can be customized into different video wall layouts.
The VM5404H is an ideal solution for applications that require multiple HDMI displays with multiple HDMI sources to be conveniently setup in multiple locations, such as for stage presentations, competitions, control centers, and installations that require real-time reports.
More from the Manufacturer
General Information
|
| Manufacturer | ATEN Technology Inc |
| Manufacturer Part Number | VM5404H |
| Manufacturer Website Address | https://www.aten.com/us/en/ |
| Brand Name | ATEN |
| Product Model | VM5404H |
| Product Name | 4 x 4 HDMI Matrix Switch with Scaler |
| Packaged Quantity | 1 |
| Product Type | Audio/Video Switchbox |
Technical Information
|
| Connectivity Technology | Cable |
| Number of Input Devices Supported | 4 |
| Device Supported | Display |
| Number of Displays Supported | 4 |
Video
|
| Graphics Modes | Full HD |
| Maximum Video Resolution | 1920 x 1080 |
| Scan Format | 1080p |
Interfaces/Ports
|
| HDMI In | Yes |
| HDMI Out | Yes |
| Connectivity (RJ-45) | Yes |
| Number of Connectivity (RJ-45) Ports | 1 |
| Number of HDMI Inputs | 4 |
| Number of HDMI Outputs | 4 |
Media & Performance
|
| Maximum Operating Distance | 49.21 ft (15000 mm) |
Physical Characteristics
|
| Form Factor | Rack-mountable |
| Height | 1.73" (44 mm) |
| Width | 10.33" (262.30 mm) |
| Depth | 17.02" (432.40 mm) |
| Weight (Approximate) | 4.10 kg |
Miscellaneous
|
| Package Contents | - 4 x 4 HDMI Matrix Switch with Scaler
- 1 x Power Cord
- 1 x IR Remote Control
- 1 x IR Receiver
- 1 x Mounting Kit
- 1 x User Instructions
|
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS | WEEE |
| Country of Origin | Taiwan |
Warranty
|
| Limited Warranty | 2 Year |
