ATEN 8x8 4K HDMI Matrix Switch - 4096 x 2160 - 4K - 8 x 8 - Display, Computer - 8 x HDMI Out
ATEN 8x8 4K HDMI Matrix Switch - 4096 x 2160 - 4K - 8 x 8 - Display, Computer - 8 x HDMI Out
ATEN 8x8 4K HDMI Matrix Switch - 4096 x 2160 - 4K - 8 x 8 - Display, Computer - 8 x HDMI Out
ATEN Technology, Inc
Photo is for Illustration purposes only. Actual Product may be different. Part Num:
VM0808HACondition: Brand New
$2,246.60
Add To Cart
BUY MORE & SAVE
Need 5 or more of these on a single order?
Ask for a quotation here.
We generally respond within 3 business hours.
Close
Total price is...
Key Highlights
• Switch between sources by using this audio video switchbox without degradation of video quality and eliminate the need to manually switch cables between sources
• Quickly and easily connect with the display
• Up to 4096 x 2160 video resolution

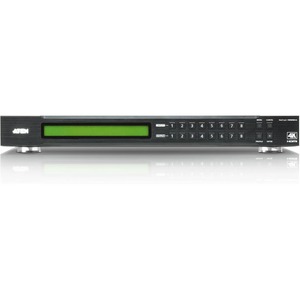

8x8 4K HDMI Matrix Switch
VM0808HA
The ATEN VM0808HA 8x8 4K HDMI Matrix Switch supports 4K resolutions of UHD (3840 x 2160) and DCI (4096 x 2160) with refresh rates of 30 Hz (4:4:4) and 60 Hz (4:2:0). Ready for the future of high-definition video switching, the VM0808HA is ideal for applications where the routing of 4K digital signals is required, such as in classrooms, auditoriums, department stores and more.
The VM0808HA matrix switch offers an easy and affordable way to route any of 8 HDMI video sources to any of 8 HDMI displays and can be operated through front-panel pushbuttons, IR remote, RS-232 control and Ethernet connections, ensuring optimum viewing and control of high-definition video. Moreover, with a built-in Web GUI, the VM0808HA is easily accessible via any web browser for remote configuration and customization of each HDMI source and display connection.
General Information
|
| Manufacturer | ATEN Technology Inc |
| Manufacturer Part Number | VM0808HA |
| Manufacturer Website Address | https://www.aten.com/us/en/ |
| Brand Name | ATEN |
| Product Line | VanCryst |
| Product Model | VM0808HA |
| Product Name | 8x8 4K HDMI Matrix Switch |
| Packaged Quantity | 1 |
| Product Type | Audio/Video Switchbox |
Technical Information
|
| Connectivity Technology | Cable |
| Number of Input Devices Supported | 8 |
| Device Supported | Display | Computer |
| Number of Displays Supported | 8 |
Video
|
| Graphics Modes | 4K |
| Maximum Video Resolution | 4096 x 2160 |
Interfaces/Ports
|
| HDMI In | Yes |
| HDMI Out | Yes |
| Connectivity (RJ-45) | Yes |
| Number of Connectivity (RJ-45) Ports | 1 |
| Number of HDMI Inputs | 8 |
| Number of HDMI Outputs | 8 |
Media & Performance
|
| Maximum Operating Distance | 49.21 ft (15000 mm) |
Physical Characteristics
|
| Form Factor | Rack-mountable |
| Height | 1.73" (43.94 mm) |
| Width | 10.33" (262.38 mm) |
| Depth | 17.02" (432.31 mm) |
| Weight (Approximate) | 3.86 kg |
Miscellaneous
|
| Package Contents | - 8x8 4K HDMI Matrix Switch
- 1 x Power Cord
- 1 x IR Remote Control
- 1 x IR Receiver
- 1 x Mounting Kit
- 1 x User Instructions
|
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS | WEEE |
| Country of Origin | Taiwan |
Warranty
|
| Limited Warranty | 5 Year |
