ATEN 4K HDMI Optical Extender (4K@300m (K1, MM) / 10km (K2, SM)) - 1 Input Device - 1 Output Device - 32808.40 ft (10000000 mm) Range - 2 x Network (RJ-45) - 4 x USB - 1 x HDMI In - 1 x HDMI Out - 4K - 4096 x 2160 - Twisted Pair - Rack-mountable
ATEN 4K HDMI Optical Extender (4K@300m (K1, MM) / 10km (K2, SM)) - 1 Input Device - 1 Output Device - 32808.40 ft (10000000 mm) Range - 2 x Network (RJ-45) - 4 x USB - 1 x HDMI In - 1 x HDMI Out - 4K - 4096 x 2160 - Twisted Pair - Rack-mountable
ATEN 4K HDMI Optical Extender (4K@300m (K1, MM) / 10km (K2, SM)) - 1 Input Device - 1 Output Device - 32808.40 ft (10000000 mm) Range - 2 x Network (RJ-45) - 4 x USB - 1 x HDMI In - 1 x HDMI Out - 4K - 4096 x 2160 - Twisted Pair - Rack-mountable
ATEN Technology, Inc

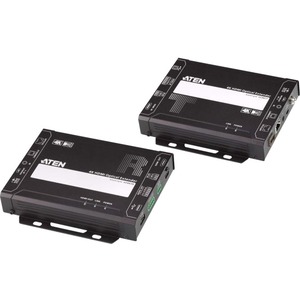

Photo is for Illustration purposes only. Actual Product may be different. Part Num:
VE883K1Condition: Brand New
$1,616.65
Add To Cart
BUY MORE & SAVE
Need 5 or more of these on a single order?
Ask for a quotation here.
We generally respond within 3 business hours.
Close
Total price is...The VE883 is a fiber-based extender designed to extend uncompressed 4K signal up to 300 m (using VE883K1) or 10 km (using VE883K2) over duplex fiber optic cables. The VE883 meets HDMI Specifications, including 3D, Deep Color (up to 12 bit), and signaling rates (up to 10.2 Gb) to ensure superior video quality. With ATEN's exclusive FarSmooth technology, the VE883 prevents lagging and freezing by matching the output rates to the input rates and ensures the video display is stable, smooth and identical to the source, particularly in long-distance extension applications where uninterrupted video streams are required. The VE883 features an HDMI input and output, analog audio input and output, USB2.0, IR, RS-232 control port, and a Gigabit Ethernet port. For point-to-point extension, the VE883 can receive fiber optic cables by inserting SFP+ modules to its optic port.
To avoid bulky cable setup, the VE883 guarantees a simple and fast solution for optimum transmission of Ethernet, IR, HDMI, RS-232, and USB signals up to 10 km simply via a set of duplex optic fiber. The VE883 is also USB transparent, making it compatible with a wide range of USB peripherals.
Engineered to meet the latest trend of lossless 4K and long distance signal extension, VE883 is suitable for where long distance transmission is a must and little interference is allowed, such as in traffic station and modern office buildings.
General Information
|
| Manufacturer | ATEN Technology, Inc |
| Manufacturer Part Number | VE883K1 |
| Manufacturer Website Address | http://www.aten.com/us/en/ |
| Brand Name | ATEN |
| Product Line | VanCryst |
| Product Model | VE883 |
| Product Name | 4K HDMI Optical Extender (4K@300m (K1, MM) / 10km (K2, SM)) |
| Product Type | Video Extender Transmitter/Receiver |
Technical Information
|
| Connectivity Technology | Wired |
| Number of Input Devices Supported | 1 |
| Number of Output Devices Supported | 1 |
| Maximum Operating Distance | 32808.40 ft (10000000 mm) |
Video
|
| Graphics Modes | 4K |
| Maximum Video Resolution | 4096 x 2160 |
Interfaces/Ports
|
| Network (RJ-45) | Yes |
| HDMI In | Yes |
| HDMI Out | Yes |
| USB | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Number of USB Ports | 4 |
| Number of HDMI Inputs | 1 |
| Number of HDMI Outputs | 1 |
Media & Performance
|
| Media Type Supported | Twisted Pair |
Physical Characteristics
|
| Transmitter Height | 1.14" (29 mm) |
| Transmitter Width | 6.54" (166 mm) |
| Transmitter Depth | 4.92" (124.90 mm) |
| Receiver Height | 1.14" (29 mm) |
| Receiver Width | 6.54" (166 mm) |
| Receiver Depth | 4.92" (124.90 mm) |
| Form Factor | Rack-mountable |
| Transmitter Weight (Approximate) | 640 g |
| Receiver Weight (Approximate) | 640 g |
Miscellaneous
|
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS | WEEE |
