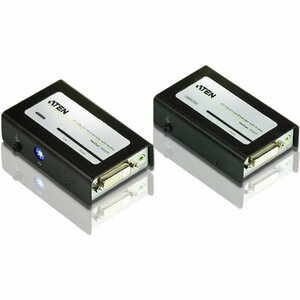

ATEN DVI Dual Link Extender with Audio - 1 Input Device - 1 Output Device - 19.69 ft (6000 mm) Range - 2 x Network (RJ-45) - 1 x DVI In - 1 x DVI Out - WUXGA - 1920 x 1200
ATEN DVI Dual Link Extender with Audio - 1 Input Device - 1 Output Device - 19.69 ft (6000 mm) Range - 2 x Network (RJ-45) - 1 x DVI In - 1 x DVI Out - WUXGA - 1920 x 1200
ATEN DVI Dual Link Extender with Audio - 1 Input Device - 1 Output Device - 19.69 ft (6000 mm) Range - 2 x Network (RJ-45) - 1 x DVI In - 1 x DVI Out - WUXGA - 1920 x 1200
ATEN Technology, Inc
Photo is for Illustration purposes only. Actual Product may be different. Part Num:
VE602Condition: Brand New
$256.07
Add To Cart
Total price is...The VE602 DVI Dual Link Extender with Audio extends your DVI display up to 60 m away from your DVI source using Cat 5e cables. The use of Cat 5e cables provides a simple and reliable connection method that takes advantage of the wiring system in most modern office buildings.
The VE602 incorporates ATEN's technology that allows A/V signals to be transmitted over one Cat 5e cable. It uses ATEN default EDID, but is able to learn and save the EDID configuration of the remote display. For dual link video signals, simply use a second Cat 5e cable.
With support for stereo audio and popular widescreen video formats, the VE602 provides crystal-clear image and sound quality for installations where remote DVI video displays are required.
More from the Manufacturer
General Information
|
| Manufacturer | ATEN Technology Inc |
| Manufacturer Part Number | VE602 |
| Manufacturer Website Address | https://www.aten.com/us/en/ |
| Brand Name | ATEN |
| Product Name | DVI Dual Link Extender with Audio |
| Product Type | Video Extender Transmitter/Receiver |
Technical Information
|
| Connectivity Technology | Wired |
| Number of Input Devices Supported | 1 |
| Number of Output Devices Supported | 1 |
| Maximum Operating Distance | 19.69 ft (6000 mm) |
Video
|
| Graphics Modes | WUXGA |
| Maximum Video Resolution | 1920 x 1200 |
Interfaces/Ports
|
| Network (RJ-45) | Yes |
| DVI In | Yes |
| DVI Out | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Number of DVI Inputs | 1 |
| Number of DVI Outputs | 1 |
Media & Performance
|
| Media Type Supported | Twisted Pair |
| Twisted Pair Cable Standard | Category 5e |
Power Description
|
| Input Voltage | 5.3 V DC |
Physical Characteristics
|
| Product Material | Metal |
| Transmitter Height | 0.94" (24 mm) |
| Transmitter Width | 2.20" (56 mm) |
| Length | 3.59" (91.30 mm) |
| Transmitter Weight (Approximate) | 350 g |
Miscellaneous
|
| Package Contents | - 1 x VE602T DVI Dual Link Extender with Audio
- 1 x VE602R DVI Dual Link Extender with Audio
- 2 x Power Adapters
- 1 x Mounting Kit
- 1 x User Instructions
|
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS | WEEE |
| Country of Origin | Taiwan |
