Atlona 4K/UHD Five-Input HDMI Switcher with Mirrored HDMI Outputs - 4096 x 2160 - 4K - 5 x 2 - Display - 2 x HDMI Out

Atlona 4K/UHD Five-Input HDMI Switcher with Mirrored HDMI Outputs - 4096 x 2160 - 4K - 5 x 2 - Display - 2 x HDMI Out
Atlona 4K/UHD Five-Input HDMI Switcher with Mirrored HDMI Outputs - 4096 x 2160 - 4K - 5 x 2 - Display - 2 x HDMI Out

Atlona Technologies

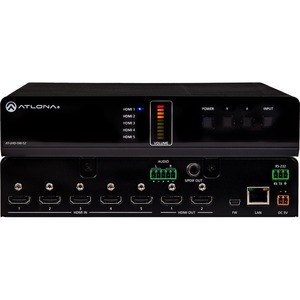

AT-UHD-SW-52 Image
Photo is for Illustration purposes only. Actual Product may be different.
Part Num: AT-UHD-SW-52
Condition: Brand New

Add To Cart


Total price is...

Quantity in stock as of last update: No

Click here to view
real-time quantity

Availability will be displayed by province.
In Stock Alert
Compare to other products

Key Highlights

• Quickly switches both video and audio between sources without physical access
• A great solution for connecting display
• 4096 x 2160 resolution for high-quality video delivery

4K/UHD, 5-Input HDMI Switcher with Mirrored HDMI Outputs

The Atlona AT-UHD-SW-52 is a 5×1 HDMI switcher with dual HDMI outputs, balanced audio outputs, automatic input selection and automatic display control capability. The switcher supports 4K/UHD @ 60 Hz with 4:2:0 color, offers 3D pass-through, and 10.2 Gbps bandwidth. With front panel buttons and IR control, it can be a standalone switcher. Designed as a cost-effective, easy to install solution, the switcher offers a web-based GUI for easy set-up and management of EDID and HDCP. Additional control options include auto-switching, front panel selector, and compatibility with RS-232, or TCP/IP-based control systems. Audio features include de-embedding of PCM audio over HDMI to either S/PDIF or two-channel analog audio outputs; pass-through of Dolby TrueHD® and DTS-HD Master Audio™; plus an Audio Return Channel feed to the S/PDIF output from the HDMI display. The compact, 1U, half-rack width enclosure is easily installed in rack mounted systems with the included 19" rack mount brackets. Two units can be mounted side-by-side.

Reliable Auto-Switching

The AT-UHD-SW-52 automatically selects an input source based on detection of the 5 volt hot plug detect (HPD) signal, as well as active video. This ensures reliable auto-switching operation for all video sources, including DVRs, DisplayPort / Mini DisplayPort adapters, and other devices that always maintain the HPD line at the 5 volt "high" state but may not be delivering active video.

4K/UHD 5×1 Switcher with Dual Outputs

The AT-UHD-SW 52 adds 4K/UHD performance and installation flexibility to Atlona's HDMI small switcher family to meet the needs of professional integration applications. Dual HDMI outputs, balanced audio output, EQ, and volume control add to the AT-UHD-SW-52's long list of features. Incorporating internal video distribution eliminates the need for an external DA to reduce system complexity to save integrators time and money.

The AT-UHD-SW-52 is ideal for use in applications where:

  • Two displays are needed to cover presentations in large rooms or where a confidence monitor is needed at the presenter's podium along with the primary room display.
  • Installers need an easy-to-integrate, five-input HDMI switcher with 4K/UHD capability to support multiple sources and mirrored displays to work with any control system.
Configured and Managed by AMS

The AT-UHD-SW-52 also supports the Atlona Management System (AMS), a powerful network software platform that integrates product configuration, management and updating. Specially designed for IP-controllable Atlona Products, the Atlona Management System reduces installation time and enables remote monitoring and support. To learn more please visit AT-SW-AMS.

General Information

Atlona Technologies

Manufacturer Part Number


Manufacturer Website Address

Brand Name


Product Model


Product Name

4K/UHD Five-Input HDMI Switcher with Mirrored HDMI Outputs

Product Type

Audio/Video Switchbox

Technical Information
Connectivity Technology


Number of Input Devices Supported


Device Supported


Number of Displays Supported


Graphics Modes


Maximum Video Resolution

4096 x 2160





Connectivity (RJ-45)


Number of Connectivity (RJ-45) Ports


Number of USB Ports


Number of HDMI Inputs


Number of HDMI Outputs


Media & Performance
Maximum Operating Distance

32.81 ft (10000 mm)

Physical Characteristics
Form Factor



1.73" (43.94 mm)


8.75" (222.25 mm)


10.28" (261.11 mm)

Weight (Approximate)

653.2 g

Package Contents

  • 4K/UHD Five-Input HDMI Switcher with Mirrored HDMI Outputs
  • User Guide
  • Desktop Power Supply
  • Detachable Power Cable
  • IR Hand Held Remote Control
  • Rack Mount Bracket Kit

Limited Warranty

10 Year
