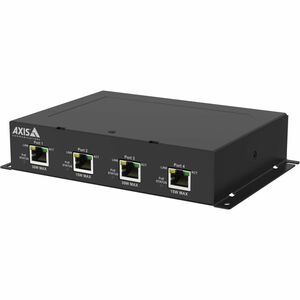

Ideal for installations where it's difficult to add power, this PoE extender can power up four 15 W devices and offers an easy way to extend PoE connectivity with up to 100 m range.
Extend your system
This PoE extender can extend the connection between your PoE switch and Axis devices up to 100 m (328 ft). It offers flexible installation, and it can be installed in areas where plenum rating is required. Furthermore, this PoE Extender can withstand temperatures between -40 °C to 65 °C (-40 °F to 149 °F). When installed in an IP66-rated Axis surveillance cabinet it becomes weatherproof and vandal resistant.
Expand your system
With AXIS TU8011 you can connect four 15 W Axis devices, or one 30 W device combined with two 15 W devices, reducing costs and installation time, as well as minimizing port usage in the switch.
Miscellaneous
|
| Package Contents | - TU8011 PoE Extender 4-port
- Installation Guide
|
| Compatibility | Axis Products: - D4100-E Network Strobe Siren
- M1055-L Box Camera
- M1075-L Box Camera
- M1135 Mk II Box Camera
- M1135-E Mk II Box Camera
- M1137 Mk II Box Camera
- M1137-E Mk II Box Camera
- P1375 Network Camera
- P1375-E Network Camera
- P1377 Network Camera
- P1377-LE Network Camera
- P1378 Network Camera
- P1378-LE Network Camera
- P1385-E Box Camera
- P1387 Box Camera
- P1387-B Box Camera
- P1387-BE Box Camera
- P1387-LE Box Camera
- P1388 Box Camera
- P1388-B Box Camera
- P1388-BE Box Camera
- P1388-LE Box Camera
- Q1615-LE Mk III Network Camera
- Q1656 Box Camera
- Q1656-B Box Camera
- Q1656-BE Box Camera
- Q1656-BLE Box Camera
- Q1656-DLE Radar-Video Fusion Camera
- Q1656-LE Box Camera
- Q1686-DLE Radar-Video Fusion Camera
- M2035-LE Bullet Camera
https://www.axis.com/products/axis-tu8011-4-port-poe-extender |
| Certifications & Standards | - IEEE 802.3at
- IEEE 802.3bt
- IEEE 802.3af
- IEEE 802at Type 2 Class 4
- UL
- CE
- UKCA
- cUL
- KC
- VCCI
- RCM
- NOM
- C
- BSMI
- EN 55035
- EN 55032 Class A
- EN 50121-4
- EN 61000-6-1
- EN 61000-6-2
- EN 61000-6-4
- FCC Part 15 Subpart B Class A
- BSMI-mark
- CAN/CSA C22.2 No. 62368-1 ed. 3
- IEC/EN/UL 62368-1 ed. 3
- KC-mark
- NOM-001
- UL 2043 (plenum rated)
|
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) | Taiwan Restriction of Hazardous Substances (Taiwan RoHS) | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) | Waste Electrical and Electronic Equipment Directive (WEEE) |
